210W Solar Panel
Portable, efficient solar charging for camping, RV travel, and off-grid power.
Answers to common questions about compatibility, charging, setup, and outdoor use.
A foldable solar panel converts sunlight into electricity and folds into a compact form for transportation and storage. It can be connected to a compatible portable power station to recharge the station’s internal battery during camping trips, RV travel, power outages, or other off-grid situations.
Unlike a solar generator, a solar panel does not store electricity by itself. Energy must be sent to a portable power station, battery, or compatible solar charge controller.
Choose the 120W solar panel when portability, easier handling, and compatibility with smaller portable power stations are your priorities.

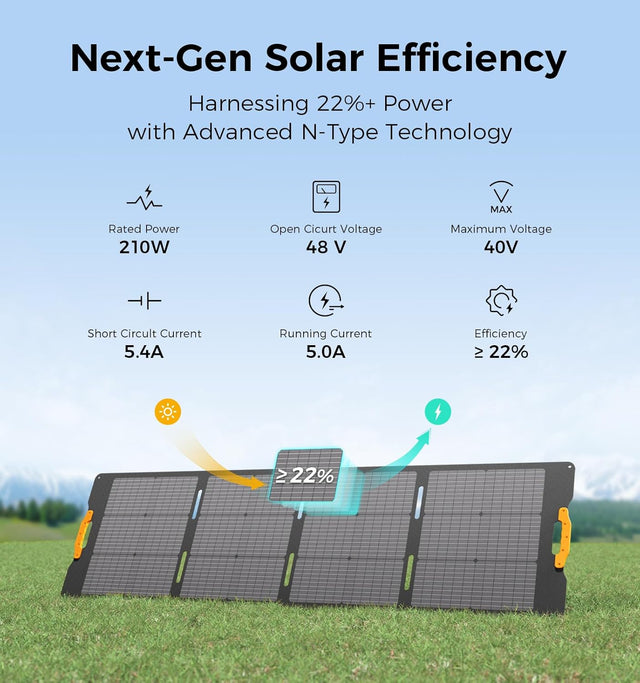

Choose the 210W solar panel when you want faster charging and your portable power station supports the panel’s voltage and current.
Before purchasing, compare the following specifications with your power station’s solar input limits:
A higher-wattage panel will not necessarily charge a power station faster if the station has a lower solar input limit.
The UDPOWER 120W solar panel is designed for use with compatible UDPOWER portable power stations, including the C200, C400, C600, S1200, and S2400.
The 210W panel is better suited to higher-capacity models that support its higher voltage, such as the S1200 and S2400.
For the C600, the 120W panel is the recommended option unless the current C600 product manual or specifications explicitly confirm compatibility with a different panel. Always verify the input voltage and current before connecting any solar panel.
Possibly. Compatibility depends on electrical specifications and connector type, not only the brand name.

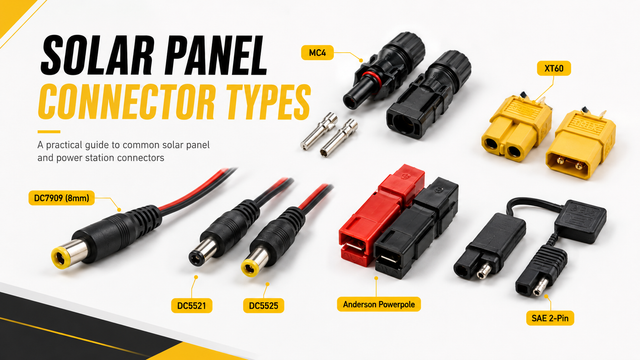

Check that the solar panel’s open-circuit voltage, operating voltage, current, and connector are within the receiving device’s supported solar input range. An adapter may solve a connector mismatch, but it cannot correct an unsafe voltage or current mismatch.
Do not connect the panel if you cannot confirm compatibility.
In most cases, no. A portable solar panel is designed to charge a portable power station or another battery system with a compatible solar charge controller.
Solar output changes constantly with clouds, shade, panel angle, and temperature. Connecting appliances through a portable power station provides stable AC, USB, or DC output while storing excess solar energy for later use.
No. The rated wattage is measured under standardized laboratory conditions. Real-world output is usually lower and changes throughout the day.
Actual solar input may be affected by:
For example, a 210W panel may produce substantially less than 210W during cloudy weather, early morning, late afternoon, or when part of the panel is shaded.
Solar input naturally fluctuates because sunlight is not constant. Passing clouds, tree branches, nearby buildings, panel temperature, and small changes in angle can cause the displayed wattage to rise or fall.
The power station may also reduce charging power when its battery is nearly full, too hot, or too cold. Fluctuation does not necessarily mean that the panel is defective.

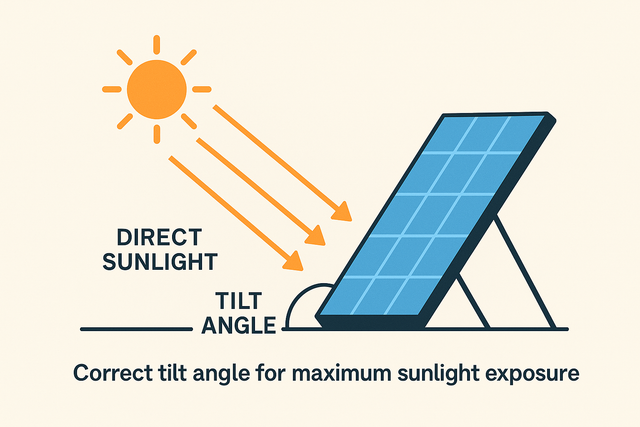

Place the entire solar surface in direct sunlight and point it toward the sun. Adjust the kickstand or panel angle while watching the solar input reading on your portable power station.
For better results:
Even a small amount of shade can reduce the output of the entire panel.
Yes, but output will be lower. Solar panels can still generate electricity from diffuse daylight, although heavy clouds, rain, fog, and winter conditions may significantly reduce charging speed.
For emergency planning, do not calculate charging time using rated wattage alone. Allow extra time and consider charging the portable power station from a wall outlet before severe weather arrives.
UDPOWER foldable solar panels are rated IP65, meaning they are designed to resist dust and low-pressure water exposure. They can handle normal outdoor use and occasional light rain or splashes.
However, they should not be submerged, left in standing water, or exposed to prolonged heavy rain. Connectors, junction boxes, cable ends, and fabric sections may require additional protection even when the solar surface is weather-resistant.
Foldable solar panels are primarily designed for portable and temporary outdoor use rather than permanent rooftop installation.
Bring the panel indoors when it is not being used, especially during:
Proper storage helps protect the folding sections, cables, connectors, kickstands, and surface coating.
Low temperatures can reduce battery performance and slow charging. For winter trips, keep the unit above freezing when possible (e.g., inside the vehicle or insulated space) and avoid charging a very cold battery at high power unless the manufacturer recommends it.
Charging time depends on the power station’s battery capacity, current battery level, solar input limit, weather, and actual panel output.
A useful estimate is:
Charging time = Energy needed ÷ Average solar input
For example, if a power station needs 600Wh of energy and the panel averages 100W, the basic estimate is about six hours. In real-world use, allow additional time for conversion losses, changing sunlight, and reduced charging power near full capacity.
Solar charging is usually spread across the strongest daylight hours rather than continuing at the same rate all day.
Only if the portable power station supports the combined voltage, current, and wattage.

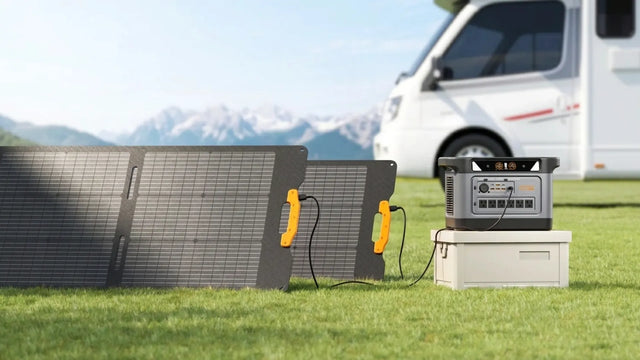

Two panels may be connected in parallel or series depending on the power station and cable configuration:
Using the wrong configuration can exceed the power station’s solar input limits. Do not connect multiple panels until you have confirmed the supported wiring method.
For UDPOWER dual-panel kits, use the approved parallel cable and follow the instructions provided with the power station.
Mixing panels with different voltages, currents, wattages, cell types, or electrical characteristics is not recommended.
Mismatched panels can reduce total output and may create an unsafe voltage or current combination. For the most predictable performance, use matching panels from the same model and connect them only in a configuration supported by the power station.
UDPOWER solar panels include a 12-month manufacturer warranty. Warranty coverage applies according to the terms and exclusions in the current UDPOWER warranty policy.
Eligible products may be returned within 30 days of receipt when the return requirements are met. Keep the original packaging, cables, accessories, and proof of purchase. Contact UDPOWER Support before returning a product so the return can be authorized and sent to the correct location.
