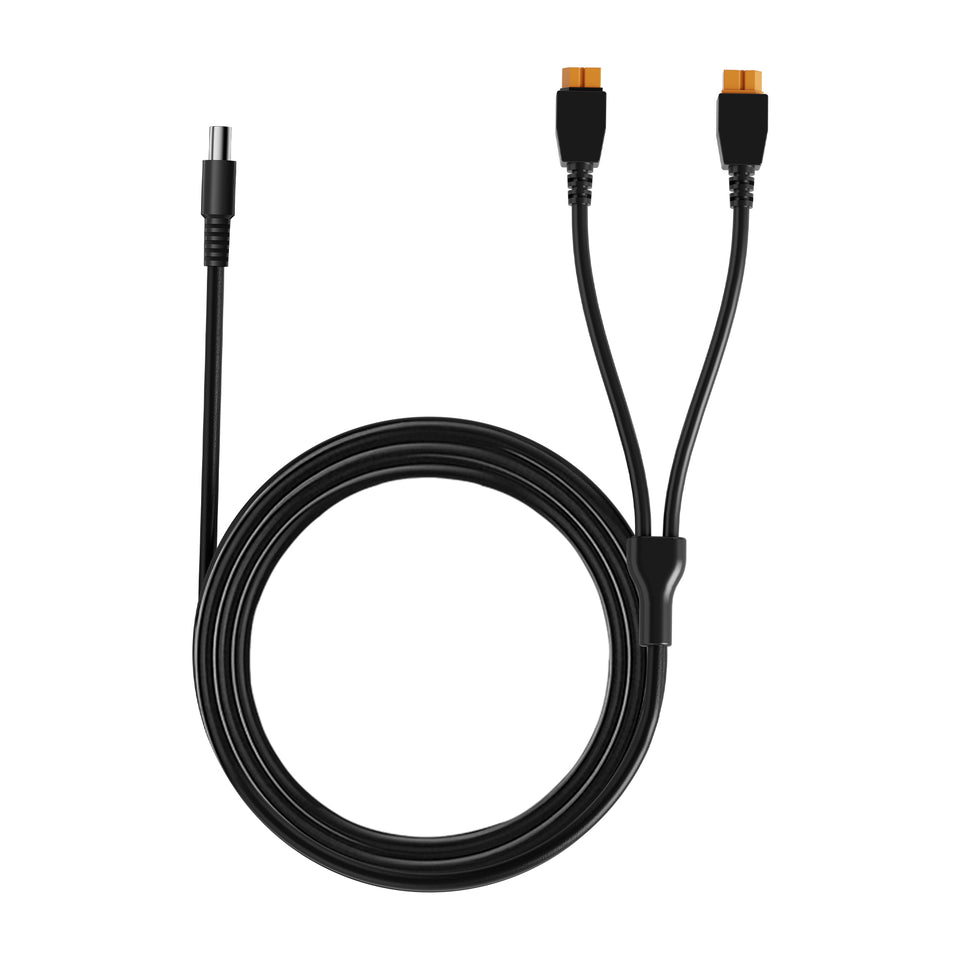

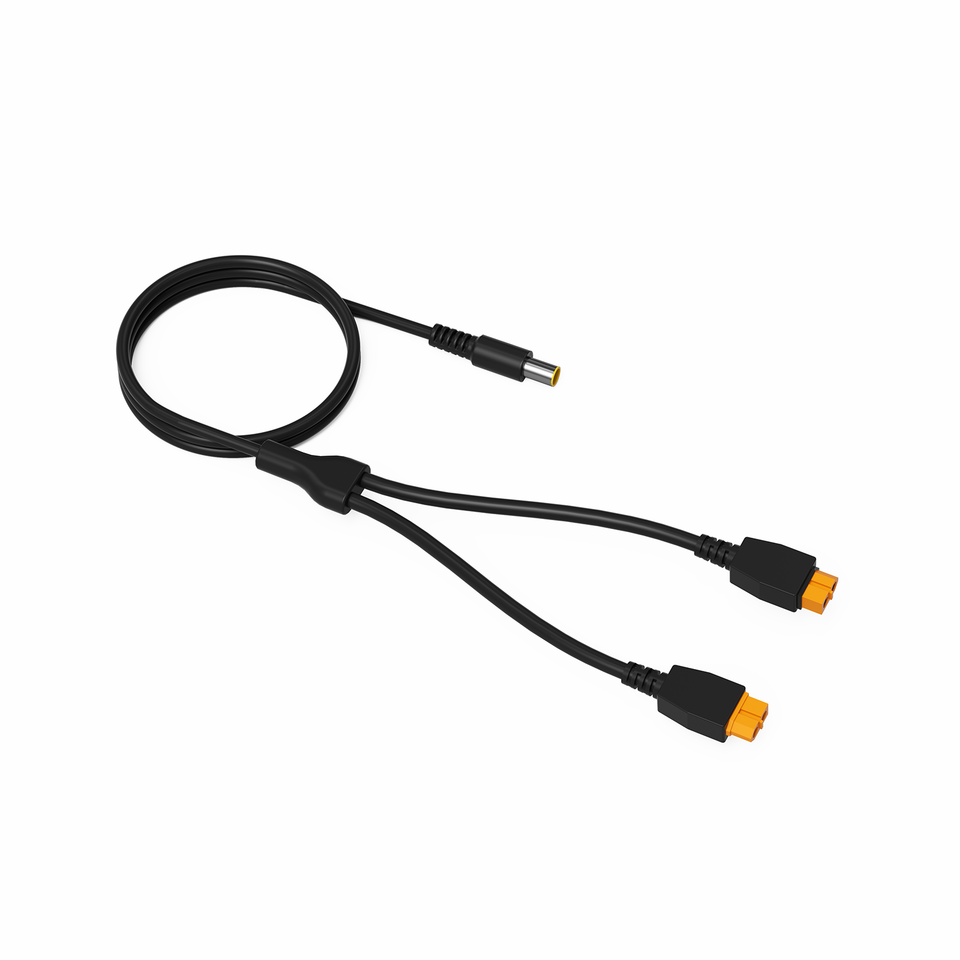

XT60 to DC7909 Y Parallel Adapter Cable for Solar Panels to Power Station

Name: XT60 to DC7909 Y Parallel Adapter Cable for Solar Panels to Power Station
Brand: UDPOWER
SKU: UD-Ycable
Price: 15.99 USD
Availability: InStock

$15.99 USD

$15.99 USD ~~$22.99 USD~~

Save: $7.00 Sold out

In Stock. Dispatch within 24 hours

Free Shipping, Estimated Delivery Date:

Parallel Charging Boost – Connect two solar panels via XT60 to increase charging current while keeping voltage stable.
Universal DC7909 Output – Designed for portable power stations with 8mm (DC7909) input.
UDPOWER Ready – Fully compatible with UDPOWER C-Series & S-Series models (DC7909 input).
High-Quality Build – 15 AWG tinned copper wire with durable PVC insulation for efficient power transfer.
Safe & Reliable – Center-positive DC7909, secure XT60 connectors, stable current up to 15A.
Extended Length – 1.2 m / 47 in cable for flexible solar panel placement outdoors.
Wide Compatibility – Works with UDPOWER, Jackery, EcoFlow (with DC7909 input), and other solar generators.
Peace of Mind – Avoids reverse polarity; ensures safe parallel use of matched solar panels.

Select options

XT60 to DC7909 Y Parallel Adapter Cable for Solar Panels to Power Station

$15.99 $22.99

30% OFF

XT60 to DC7909 Y Parallel Adapter Cable for Solar Panels to Power Station

Quanity

$15.99

Secure Payment Methods We Accept

Dispatched in 24 hours

We strive to ship all available items within 24 hours of your order. However, dispatch times may vary during weekends or holidays.

30-Day Returns Policy

We hope you'll love your UDPOWER products, but if something isn't quite right, you can return it within 30 days as long as it's in good working condition. We provide a return label and support local returns throughout the U.S. for easy and fast service.

5-Year Warranty

5-Year Warranty Protection

All UDPOWER products come with a 5-year warranty for your peace of mind. Please check the warranty policy for more details.

Free Local Shipping

We offer free shipping to the 48 contiguous states. This offer does not apply to Alaska, Hawaii, Puerto Rico, Guam, or other U.S. territories.

Description
Specifications
Reviews

Power up your adventures with the XT60 to DC7909 Y Parallel Adapter Cable, designed to connect two solar panels in parallel for faster and more efficient charging. This cable allows you to combine the output of two XT60 solar panels into a single DC7909 (8mm) input, making it ideal for portable power stations and solar generators.

Built with 15 AWG tinned copper wire and durable PVC insulation, the cable ensures stable power transmission, reduced resistance, and long-lasting performance. The Y-shaped design makes it simple to set up, while the compact length keeps your gear organized and travel-friendly.

Perfect for camping, RV trips, or off-grid living, this adapter is fully compatible with UDPOWER C-Series and S-Series portable power stations, as well as other brands like Jackery and EcoFlow that use DC7909 inputs.

⚠️ Note: Always check your power station’s maximum PV input rating before use. Do not exceed voltage/current limits, and ensure your solar panels have similar Voc/Vmp values when connected in parallel.

Specifications — XT60 to DC7909 (8mm) Parallel Y Cable

Parameter	Specification
Product Name	XT60 to DC7909 Y Parallel Adapter Cable
Function	Parallels two XT60-output solar panels to charge a portable power station via DC7909 (8mm) input
Input Connector	2 × XT60 Male
Output Connector	1 × DC7909 (8mm) Male
Polarity	XT60: standard + / −; DC7909: center-positive (typical)
Cable Length	1.2 m / 47 in (per branch)
Wire Gauge	15 AWG tinned copper
Max Voltage	60 V DC
Max Current (recommended)	≤ 15 A total (limited by DC7909 port & device spec)
Jacket Material	PVC insulation
Operating Temperature	-20 °C to +80 °C
Compatibility	Portable power stations with DC7909 (8mm) input. Fully compatible with UDPOWER portable power stations (C-Series / S-Series models with DC7909 input).
Use Case	Parallel connection to increase charging current while keeping voltage the same
Notes	Do not exceed your power station’s maximum PV input (voltage/current). Avoid reverse polarity connection. Ensure both solar panels have similar Voc/Vmp before paralleling.
